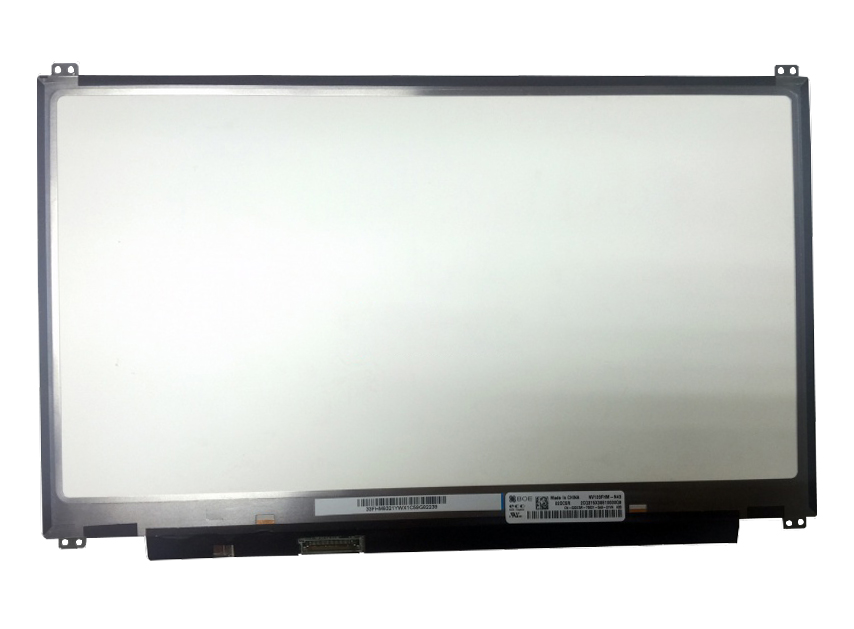

HN133WU1-100点击次数：498
发布时间：2017-03-08 16:16:57
|
|---|
| 面板型号 Panel Model | HN133WU1-100 |
| 面板品牌 Panel Brand | BOE |
| 面板描述 Descrition | a-Si TFT-LCD ,13.3 inch, 1920×1080 |
| 面板类型 Panel Type | a-Si TFT-LCD |
| 显示模式 Display Mode | ADS, Normally Black, Transmissive |
| 显示区域 Active Area | 293.76×165.24 mm |
| 外观区域 Outline | 305.37×188.77×3 mm |
| 外观式样 Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| 表面处理 Surface | Antiglare, Hard coating (3H) |
| 对比度 Contrast Ratio | 800:1 (Typ.) |
| 显示颜色 Display Colors | 16.7M (8-bit) , CIE1931 72% |
| 响应时间 Response Time | 13.5/16.5 (Typ.)(Tr/Td) |
| 可视角度 Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| 扫描频率 Frequency | 60Hz |
| 光源类型 Lamp Type | 9S4P WLED Embedded (LED Driver) |
| 信号接口 Signal Interface | eDP (2 Lanes) , 40 pins |
| 面板电压 Input Voltage | 3.3V (Typ.) |
