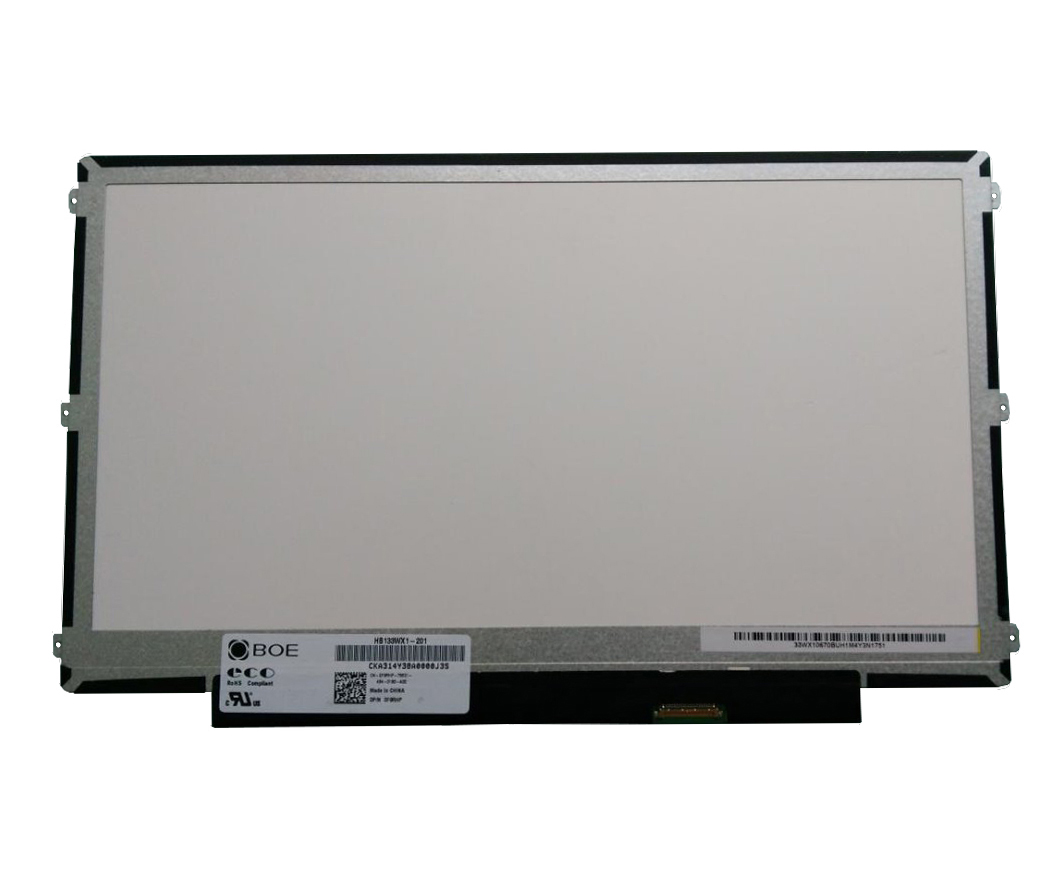

HB133WX1-201点击次数：441
发布时间：2017-03-08 16:04:56
|
|---|
| 面板型号 Panel Model | HB133WX1-201 |
| 面板品牌 Panel Brand | BOE |
| 面板描述 Descrition | a-Si TFT-LCD ,13.3 inch, 1366×768 |
| 面板类型 Panel Type | a-Si TFT-LCD |
| 显示模式 Display Mode | TN, Normally White, Transmissive |
| 显示区域 Active Area | 293.42×164.97 mm |
| 外观区域 Outline | 314.1×188.75×3.6 mm |
| 外观式样 Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| 表面处理 Surface | Antiglare |
| 对比度 Contrast Ratio | 500:1 (Typ.) |
| 显示颜色 Display Colors | 262K (6-bit) , CIE1931 45% |
| 响应时间 Response Time | 12 (Typ.)(Tr+Td) |
| 可视角度 Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| 扫描频率 Frequency | 60Hz |
| 光源类型 Lamp Type | 9S4P WLED Embedded (LED Driver) |
| 信号接口 Signal Interface | eDP (1 Lane) , 30 pins |
| 面板电压 Input Voltage | 3.3V (Typ.) |
