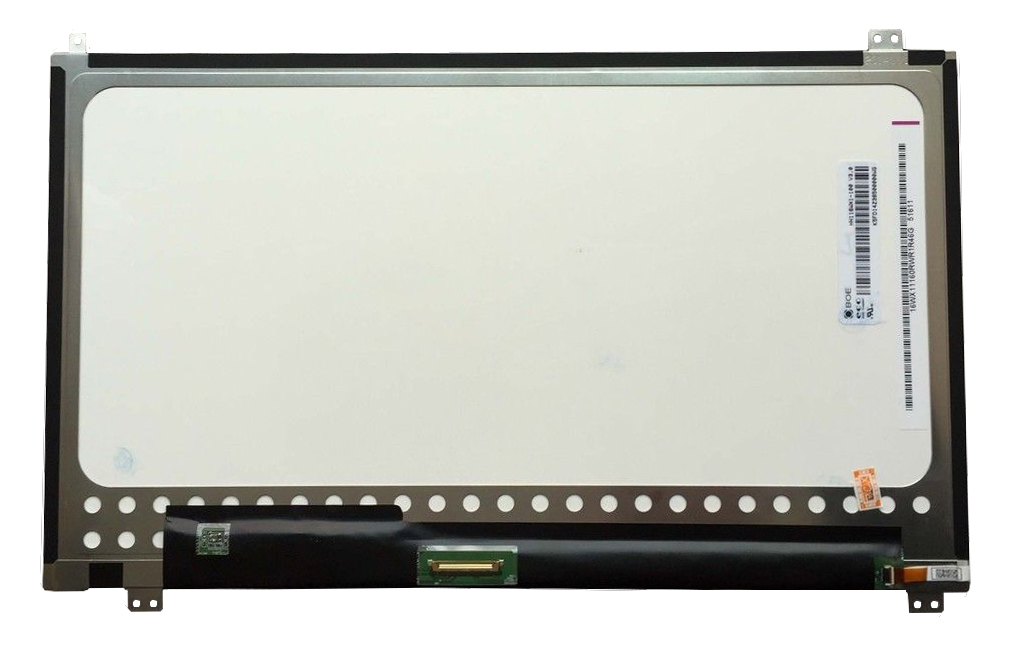

HN116WX1-100点击次数:353
发布时间:2017-03-01 09:54:01
|
面板型号 Panel Model | HN116WX1-100 |
面板品牌 Panel Brand | BOE |
面板描述 Descrition | a-Si TFT-LCD ,11.6 inch, 1366×768 |
面板类型 Panel Type | a-Si TFT-LCD |
显示模式 Display Mode | ADS, Normally Black, Transmissive |
显示区域 Active Area | 256.125×144 mm |
外观区域 Outline | 268×169.5×5.2 mm |
外观式样 Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
表面处理 Surface | Glare (Haze 0%), Hard coating (3H) |
对比度 Contrast Ratio | 800:1 (Typ.) |
显示颜色 Display Colors | 262K (6-bit) , CIE1931 50% |
响应时间 Response Time | 30 (Max.)(Tr+Td) |
可视角度 Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
扫描频率 Frequency | 60Hz |
光源类型 Lamp Type | 9S4P WLED Without Driver |
信号接口 Signal Interface | eDP (2 Lanes) , 30 pins |
面板电压 Input Voltage | 3.3V (Typ.) |
